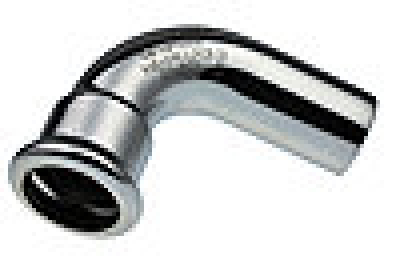

Carbon steel Press curves 90 ° with inside and outside sleeve

Connection size:

3,07 EUR

incl. 19% tax excl. Shipping costs

Carbon steel press fittings with "M" shape

Delivery / service:

C-steel press-sheet
Angle: 90 degrees
Connection variant: An inner sleeve and an outer sleeve (inside + outside)
Executed with pressing contour M jaws
Thin-walled, precision steel tubes laser-welded according to DIN EN 10305-3, made of
Quality steel (material no. 1.0034) with a very low carbon content
The outside of the tube by a thermally zinc layer and an additional passivation
protected by a chromate
Pressed on leakage = LPB
On request, we will (on request: Info@badshop-web.de) and carbon steel pipes at current prices in selected regions

For more technical information:

Operating pressure: max. 16 bar
Oper. 135 ° C (with LBP-green seals up to 200 ° C)
Available in tube diameter: 15, 18, 22, 28, 35, 42 and 54mm (Select "Options" the right fitting size of your connection).
