Carbon steel Press Transition with male thread

Size of the crossing:

7,04 EUR

incl. 19% tax excl. Shipping costs

Carbon steel press fittings with "M" shape

Delivery / service:

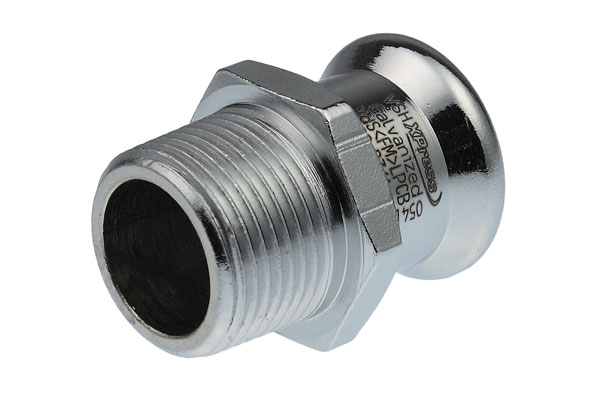

C-steel press Transition with male thread
Connection variant: one inner sleeves and one male thread
Executed with pressing contour M jaws
Thin-walled, precision steel tubes laser-welded according to DIN EN 10305-3, made of
Quality steel (material no. 1.0034) with a very low carbon content
The outside of the tube by a thermally zinc layer and an additional passivation
protected by a chromate
Pressed on leakage = LPB
On request, we will (on request: Info@badshop-web.de) and carbon steel pipes at current prices in selected regions

For more technical information:

Operating pressure: max. 16 bar
Oper. 135 ° C (with LBP-green seals up to 200 ° C)
Available in tube diameter: 15, 18, 22, 28, 35, 42 and 54mm (Select "Options" the right fitting size of your connection).
