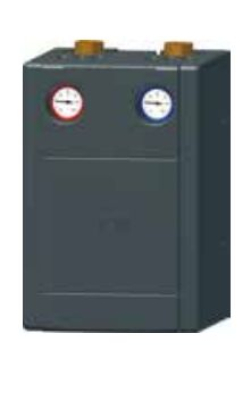

Wolf heating circuit DN 25 with insulation shell 20 72 135
Wolf heating group DN 25 with insulation shell
Delivery:
- Wolf Heating group DN 25
- High-efficiency pump (EEI <0.20) self-regulating wired ready to plug with cable
- Ball valves with thermometer in flow and return
- Gravity brake without overflow
- Dimensions HxWxD: 384x250x260
- Bottom connection flat sealing 1½ "
- Top Termination releasable Adaptor on IG 1 "(DN25)
- Design-insulation shells of EPP
- Assembly completely assembled
- tested hydraulically and electrically
- easy exchange flow from left to right when mounted on manifold bar
- no additional wall mount required
- Work number: 20 72 135
Specification:
- Ap = 150 mbar at V = 2350 l / h
- at .DELTA.t 10K to 27kW
- at .DELTA.t 15K to 41kW
- at .DELTA.t 20K to 55kW
