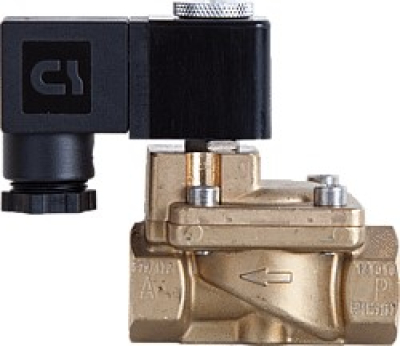

Solenoid valve 3/8 "suitable for drinking water
Solenoid valve 3/8 "suitable for drinking water
Scope of supply / equipment:
- Solenoid valve with 3/8 "female thread
- Both side with internal thread
- Suitable for Trinwasser
- For the use of neutral gaseous and liquid media (air / water)
- Normally closed (open on request)
- The specified minimum pressure must be as differential pressure for proper operation of the servo control always available
- Mounting: In any position
- Seal: NBR
- Fluid temperature: -10 ° C to + 80 ° C
- With solenoid and Connectors
- Voltage: 230 Volt, 50 Hz
- Degree of protection: IP65
- 100% ED VDE0580
- Quick closing
- Made in Germany
- Rated pressure: 0.3 - 20 bar
- With min. 0.3 bar working pressure difference
- Please select the suitable size under "options"
Additional Information:
Valve normally closed (NC). When current is applied, the solenoid opens the pilot hole and the pressure is building on the top side of the membrane. With the increased pressure under the diaphragm lifts it off the valve seat. The specified minimum pressure must always be present as the pressure difference.
