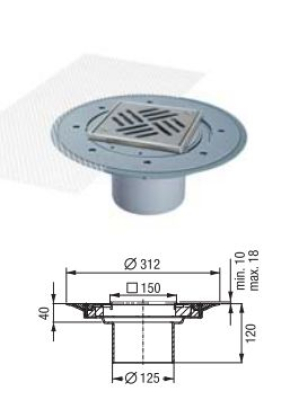

Boiler floor and ceiling outlet Practicus
Scope of supply / equipment: - Kessel bottom and top end bolted to slotted cover 138 x138 mm
- Plastic housing
- With removable odor trap
- Fire and smoke protection
- Honeycomb for pefekte involvement in concrete
- Ideal for connection to plastic pipe
- Height of seal water 50 mm
- Self-cleaning due to corrosion-free and smooth surface

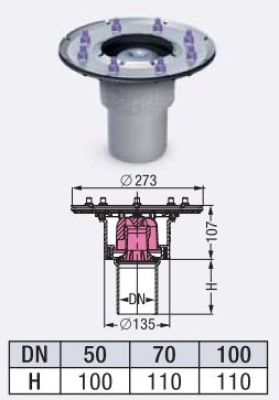

Technical Information: - Size: DN 100, DN 70 or DN 50
- Design: Vertical pipe connection
- Sealing: With Variofix thin bed attachment and sealing flange
- Discharge rate: 1.8 l / s
Work number: - DN 50 = 45259.51
- DN 70 = 45279.51
- DN 100 = 45219.51
