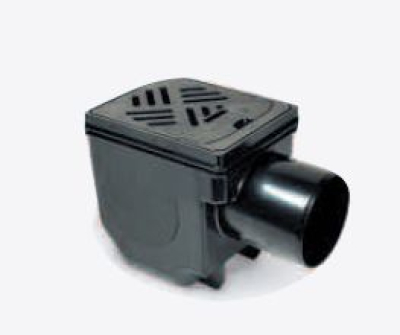

Kessel cellar expiry with odour trap incl. rust of plastic
Scope of supply / equipment:
- Kessel cellar expiry with odour trap
- Slit rust and frame of plastic black
- Incl. loose mud separator
- Telescopic height adjustable from 25 mm to 55 mm
- Rust size: 150 x 190 mm
- Load class K3 = 300 kg
- Work number: 33101
Technical information:
- Nominal width: DN 100

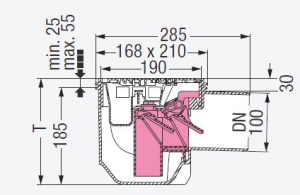

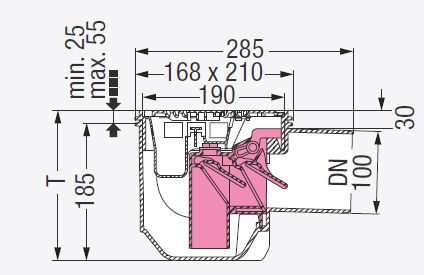

- Installation depth: 210 - 240 mm
- Recess mass: 320 x 190 mm
- Drain achievement: 1.8 l/s
- Connection variation: waagrecht
