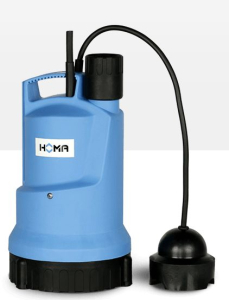

Homa diving power pump Chromatic C240 WF

Homa submerged pump Cromatic C240 WF

Scope of supply / equipment:


• Suitable for clear and dirty water with solids up to 3 mm
• Flat suction submersible pumps with jacket cooling, automatic flat suction with sensor control
• Pump for pumping clean or slightly dirty water. Automatic suction at low water levels (from 5 mm) to prevent major flooding in rooms without a pump shaft or floor drain
• Clear or dirty water with solids up to 3 mm particle size. Max. temperature of the pumped medium: 35°C, briefly up to 60°C.
• The cooling jacket with top-mounted pressure connection ensures sufficient motor cooling even at low water levels (drip operation).
• Operating and Installation Instructions

• Operating voltage: 230 volts
• Motor power: 0.50 kW
• Rated current: 2.2 A
• Max. head (pump differential pressure): 8.0 meters
• Max. flow rate Qmax: 10.0 m³/h
• Pressure connection: 1 1/4"
• Max. particle size: 3 mm
• Weight: 5.4 kg
• Dimensions: Diameter 261 mm x Height 301 mm
