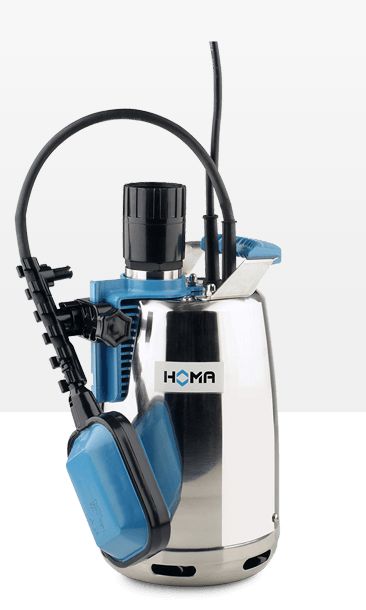

Homa Cromatic CR253 Submersible Pump
Homa Cromatic CR253 Submersible Pump
Scope of delivery/features:
-
Drainage and drainage tasks in clean or contaminated water. Basement drainage, keeping pits, shafts, and rooms dry. Wastewater disposal in basements (e.g., sinks, showers, washing machines).
-
Surface water lowering. Emergency use in case of flooding. Water extraction from streams or reservoirs for irrigation.
-
Clear or contaminated water with solids up to 10 mm particle size. Max. temperature of the pumped medium: 35°C, briefly up to 60°C.
-
Stainless steel motor shaft with ceramic-coated sealing surface, permanently lubricated roller bearings.
-
The cooling jacket with top-mounted pressure connection ensures sufficient motor cooling even at low water levels (drip operation).
-
Operating and Installation Instructions
Technical Information:
-
Operating voltage: 230 volts
-
Motor power: 0.53 kW
-
Rated current: 2.1 A
-
Max. head (pump differential pressure): 8.0 meters
-
Max. flow rate Qmax: 10.0 m³/h
-
Pressure connection: 1 1/4"
-
Max. particle size: 10 mm
-
Weight: 5.0 kg
-
Dimensions: Diameter 151 mm x Height 316 mm
