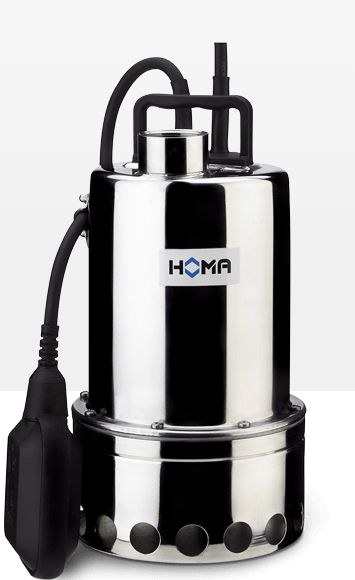

Homa Cromatic CR 360 Submersible Pump

Homa Cromatic CR 360 Submersible Pump

Scope of Delivery/Features:

• Pump for pumping wastewater, even with coarse solids and fibers up to 20 or 30 mm in diameter.

• Compact, lightweight, and robust stainless steel design, ideal for domestic wastewater disposal or as a portable emergency pump.

• Motor housing, motor shaft, pump housing, screws, suction strainer, and impeller (1.4301 stainless steel).

• Clear and wastewater with solids up to 20 or 30 mm in size. Max. temperature of the pumped medium: 35°C, briefly up to 60°C.

• The cooling jacket with top-mounted pressure connection ensures sufficient motor cooling even at low water levels (drip operation).

• Operating and Installation Instructions

Technical Information:

• Operating voltage: 230 volts

• Motor power: 0.63 kW

• Rated current: 2.9 A

• Max. head (pump differential pressure): 7.5 meters

• Max. flow rate Qmax: 12.0 m³/h

• Pressure connection: 1 1/4"

• Max. particle size: 20-30 mm

• Weight: 6.9 kg

• Dimensions: Diameter 154 mm x Height 285 mm
