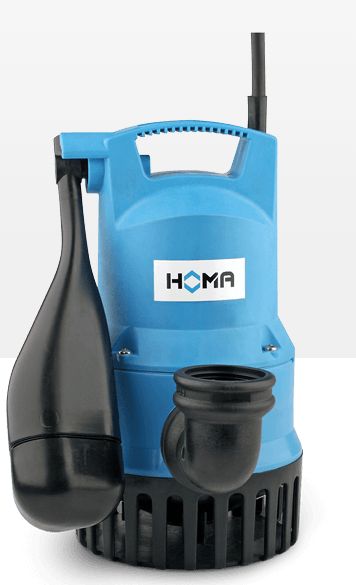

Homa Bully C 140 Submersible Pump

Homa Bully C 140 Submersible Pump

Scope of delivery/features:

• Submersible wastewater pump with jacket cooling for clear and wastewater

• For drainage and irrigation applications in clean or contaminated water. Basement drainage, keeping pits, shafts, and rooms dry. Wastewater disposal in basements (e.g., sinks, showers, washing machines). Suitable for mobile use.

• Clear, dirty, and grey water with solids up to 10 mm particle size. Max. temperature of the pumped medium: 35°C, briefly up to 60°C.

• Single-phase electric motor. Motor protection via temperature monitoring. Insulation class F. Protection class IP 68. Stainless steel motor shaft with ceramic-coated sealing surface, permanently lubricated roller bearings.

• Motor housing & screws (stainless steel), pump housing & suction strainer (glass fiber reinforced plastic), impeller (glass fiber reinforced plastic), elastomers (NBR)

• 10 m connection cable allows for an actual immersion depth of 7 m. Partially submerged motor for optimal cooling, even when the motor is submerged.

• Operating and installation instructions

Technical information:

• Operating voltage: 230 volts

• Motor power: 0.32 - 0.75 kW

• Rated current: 1.5 A

• Max. head (differential pressure of the pump): 7.0 meters

• Max. flow rate Qmax: 7,0 m³/h

• Pressure connection: 1 1/4"

• Dimensions: Diameter 221 mm x Height 252 mm
