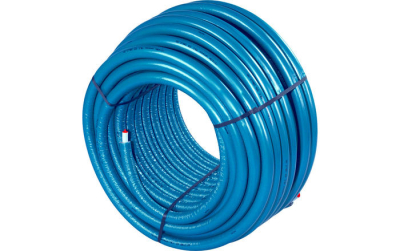

Uponor Pipe System Uni Pipe Plus S4 white 25 x 2,5mm, Länge: 50m
Uponor Pipe System Uni Pipe Plus S4 white 25x2,5 mm
Scope of supply / equipment:
- Uponor Pipe System Uni Pipe Plus S 4
- Type: Roller tube in white 25 x 2,5 mm
- Insulation: 4mm insulation, color: blue
- Tube length: 50 meters
- Press contour executable with: Uponor system jaws and contour "U"
- Suitable for connection to Uponor system fittings
- 5-layer composite pipe with natural aluminum PE-RT layer
- Hot water temperatures up to 70 ° C possible
- Suitable for drinking water and heating installation (also underfloor heating)
Uponor Advertising Fittings and Moldings
Further technical information:
- Operating pressure: max. 10 bar
- Operating temperature: max. 70 ° C
- Available in tube diameter: 16, 20, 25, 32
Uponor pipe system in section
Can be used for the following operating media:
- drinking water systems
- heating systems
- Compressed air system
- Cooling water systems
- Sprinkler and extinguishing water systems
- Rainwater harvesting systems
