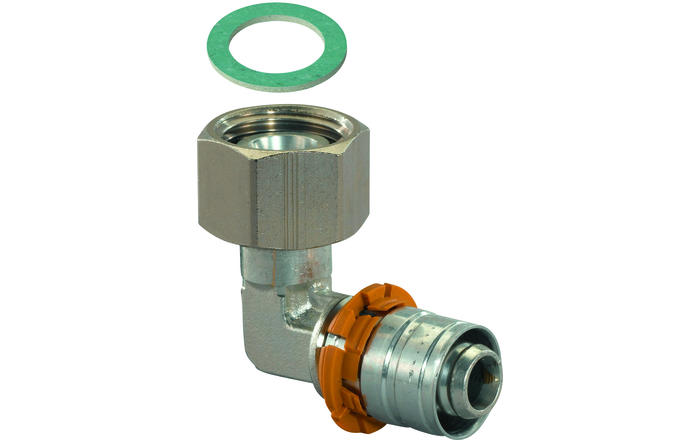

Uponor S-Press angle screw connection
Uponor fitting angle screw connection
Scope of supply / equipment:
- Uponor Press angle screw connection
- Type: internal thread
- Connection variant: Two press sleeves
- Press contour executable with: Uponor system jaws and contour "U"
- Incl. Two press sleeves for the permanent pressing
- Suitable for connection to Uponor system pipe
- Safety by Uponor PressCheck (water outlet with non-pressed version)
- Plastic fitting made of PPSU
- Permanently tight connection
- Corrosion resistant due to plastic design
- Suitable for drinking water and heating installation
- Uponor Advertising Fittings and Moldings
Further technical information:
- Operating pressure: max. 10 bar
- Operating temperature: max. 95 ° C
- Available in tube diameters: 14, 17, 20, 25, 32, 40, and 50 (Select the appropriate fitting size for your connection under "Options").
Uponor pipe system in section
Can be used for the following operating media:
- drinking water systems
- heating systems
- Compressed air system
- Cooling water systems
- Sprinkler and extinguishing water systems
- Rainwater harvesting systems
