Rehau RAUTITAN Tees RX with internal thread and wall mounting

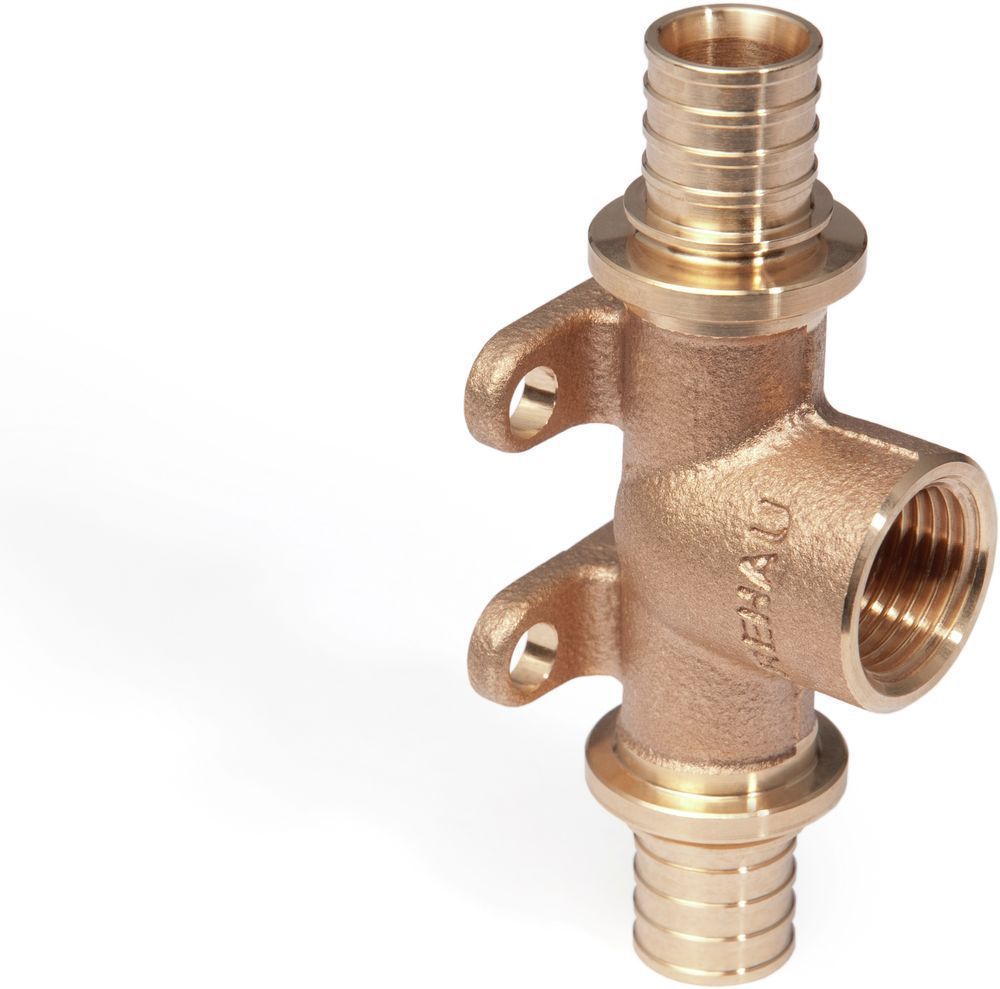

Rehau RAUTITAN Tees RX with internal thread and wall mounting
Scope of supply / equipment:
- Rehau RAUTITAN Tees RX with internal thread and wall mounting (diameter from 16 to 63mm)
- Connection variant: Two sliding sleeves (not included)
- Pressing contour executable with: Rehau sliding sleeve technique
- Material: Up 40mm in plastic PX and from 50mm in gunmetal
- Suitable for connection to Rehau Systempipe
- Permanently tight connection (no O-ring)
- Corrosion-resistant plastic version
- Suitable for drinking water and heating installation
Additional technical information:
- Operating pressure: max. 10 bar
- Operating temperature: max. 95 ° C
- Available in tube diameter: 16, 20, 25, 32, 40, 50 and 63mm (Under "options" the suitable fitting size of your connection).
Can be used for the following operating media:
- drinking water systems
- heating systems
- Compressed Air System
- Cooling water systems
