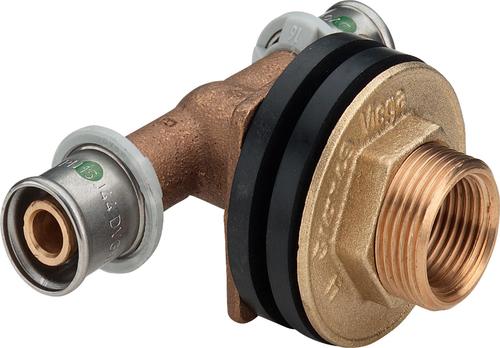

Viega Sanfix Fosta Double wall bushing just 16 x 1/2", model 2132.81
Viega Sanifix Fosta with SC-Contur
Moldings and pipe system
Scope of supply / equipment:
• Viega Sanifix Fosta Double wall bushing just
. Execution: With internal thread 16 x 1/2"
. Press contour executable with: VP press jaws
• Profipress press fitting system with SC-Contur (unpressed leak)
• Green dot for proof of SC-Contur and drinking water usage
• All molded parts made of red brass
• Sanfix pipes as pure PE-X pipes
• Sanfix Fosta pipes as a composite pipe system
• Suitable for the drinking water u. heating equipment
Further technical information:
• Operating pressure: max. 10 bar
• Operating temperature: max. 70 ° C
• Available in tube diameters: 16, 20, 25, 32mm (Select the appropriate fitting size under "Options").
• SC-Contur means = leaking in the unpressed state
Suitable for the following operating media:
• Heating systems up to 110 ° C
• Drinking water systems
• Compressed air system
• cooling water systems
• Rainwater harvesting systems
