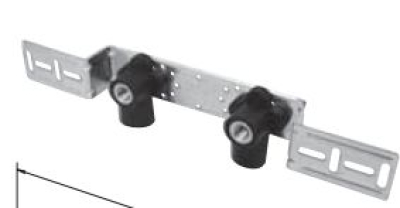

Roth Wall disc set type I/SE 20mm x 1/2" - 100mm
Roth Wall disc set type I/SE 20mm x 1/2" - 100mm
Scope of supply / equipment:
- Roth Press Wall disc set type I/SE 20mm x 1/2" - 100mm
- Connection variation: Consisting of two, on a steel metal to premounted Roth-wall discs
- Presskontur workable with: Roth system baking and Contur "R"
- Incl. Edelstahlhüsen for the insoluble pressure
- Suitable for the connection with Roth-system pipe
- Security druch Roth PressCheck (water escape by ungrouted implementation)
- Permanently thick connection
- Resistant to corrosion by plastic implementation
- Suitable for the drinking water and heating installation
- After DVGW-certificated. Work sheet 534
Other technical information:
- Working pressure: max. 10 cash
- Operating temperature: max. 95 °C
- Available in pipe diameter: 14, 17, 20, 25, 32, 40, 50 und 63mm (you select under "options" the suitable fitting size of your connection).
Applicable for the following company media:
- Drinking water arrangements
- Heating systems
- Air pressure system
- Coolant arrangements
- Rose and fire-fighting water arrangements
- Rainwater-arrangements of utilisation
