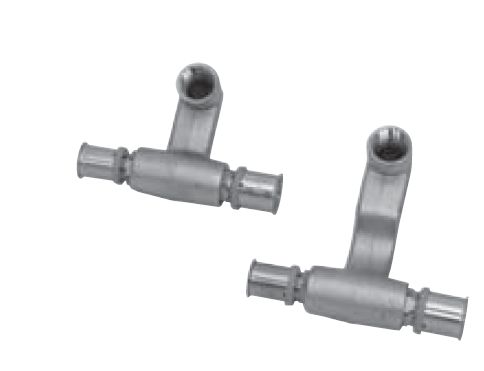

Roth Connection unity for skirting board assembly
Roth Connection unity for skirting board assembly with
Internal thread and Roth system connection
Internal thread and Roth system connection
Scope of supply / equipment:
- Roth Connection unity for skirting board assembly in brass
- Connection variation: Set to the connection of a valve heater from the sock strip with Roth-pipe connection
- Scope of supply: The set contains a short and long connection element from a mould part with internal thread
- Presskontur workable with: Roth system baking and Contur "R"
- Incl. Edelstahlhülsen for the insoluble pressure
- Suitable for the connection with Roth-system pipe
- Security: Roth PressCheck (water escape by ungrouted implementation)
- Permanently thick connection
- Resistant to corrosion by plastic implementation
- Suitable for the drinking water and heating installation
- After DVGW-certificated. Work sheet 534
Other technical information:
- Working pressure: max. 10 cash
- Operating temperature: max. 95 °C
- Delivery: 1 set exists of two connection units
Applicable for the following company media:
- Drinking water arrangements
- Heating systems
- Air pressure system
- Coolant arrangements
- Rose and fire-fighting water arrangements
- Rainwater-arrangements of utilisation
