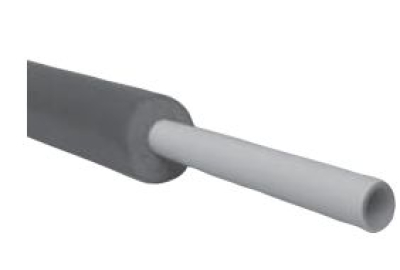

Roth system pipe aluminium-laser plus 20 mm with heat insulation 9 mm, 50 Metres
Roth system pipe aluminium-laser plus 20 mm with heat insulation 9 mm;
pipe length 50 metres
pipe length 50 metres
Scope of supply / equipment:
- Roth system pipe aluminium-laser plus 20 mm with heat insulation 9 mm
- Very high quality by five layers proceed and aluminium casing
- Suitable for the connection with Roth fittings and form parts
- Resistant to corrosion by plastic and Aluminumausführung
- Suitable for the drinking water and heating installation
- Dickwandiges base pipe guarantees high stability
- Lasergeschweißt for a homogeneous aluminium layer
- Lasting group by five Pipe
- Oxygen-close and Inkrustationsfrei
- Suitable for every water quality
- Printing-solidly and Temperature-solidly
- Sound-reducing
- Permanently steady flow amount
- Long life span
- After DVGW-certificated
Other technical information:
- Working pressure: max. 10 cash
- Operating temperature: max. 95 °C
- Pipe length: 50 metres
- Pipe diameter: 20 mm
- Wall strength: 2 mm
- Inside diameter: 16 mm
- Insulation: with heat insulation 9 mm
- Warm conductance of the insulation: WLG 040
Layer construction:
- 1. Polyethylen
- 2. Polymer
- 3. Aluminium
- 4. Polymer
- 5. Polyethylen
Applicable for the following company media:
- Drinking water arrangements
- Heating systems
- Air pressure system
- Coolant arrangements
- Rose and fire-fighting water arrangements
- Rainwater-arrangements of utilisation
Delivery time: approx. 10 days
