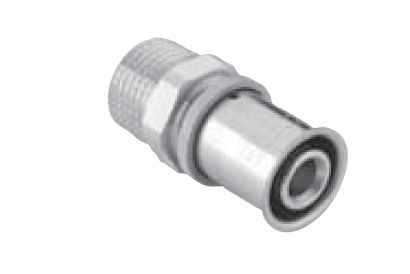

Roth Press transitional fitting
Roth fitting transitional fitting
Scope of supply / equipment:
- Roth Press Transitional fitting in brass
- Connection variation: One Pressmuffen from high-grade steel and an external thread
- Presskontur workable with: Roth system baking and Contur "R"
- Incl. Edelstahlhüsen for the insoluble pressure
- Suitable for the connection with Roth-system pipe
- Security druch Roth PressCheck (water escape by ungrouted implementation)
- Permanently thick connection
- Resistant to corrosion by plastic implementation
- Suitable for the drinking water and heating installation
- After DVGW-certificated. Work sheet 534
Other technical information:
- Working pressure: max. 10 cash
- Operating temperature: max. 95 °C
- Available in pipe diameter: 14, 17, 20, 25, 32, 40, 50 und 63mm (you select under "options" the suitable fitting size of your connection).
Applicable for the following company media:
- Drinking water arrangements
- Heating systems
- Air pressure system
- Coolant arrangements
- Rose and fire-fighting water arrangements
- Rainwater-arrangements of utilisation
