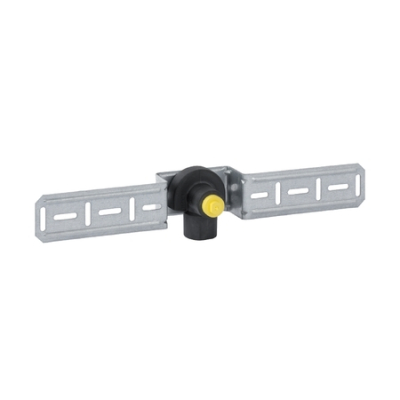

Geberit Mepla mounting plate just 20mm x 1/2 "
Mepla Mepla mounting plate just 20mm x 1/2"
Scope of supply / equipment:
- Mepla Mounting plat just
- Format: with internal thread 20mm x 1/2"
- Manufacturer: Geberit
- Connection option: press connection
- Pressing contour executable by Mepla- system jaws
- Seal two O-rings
- Fittings PVDF (polyvinylidene fluoride) or gunmetal
- Suitable for connection to Mepla- system pipe
- Leaking Un grouted
- Permanently sealed connection
- Corrosion-resistant plastic construction
- Suitable for drinking water and heating installation
For more technical information:
- Operating pressure: max. 10 bar
- Operating temperature: max. 70 ° C and 80 ° C for water for heating
- Available in tube diameter: 16, 20, 26 and 32 mm (Select under "options" the suitable fitting size of your connection).
Applicable for the following operating media:
- Drinking water systems
- Heating systems
- Compressed air system
- Rainwater
- Sea water
- Cooling water
- Process water
- Nitrogen
- Industrial Application
