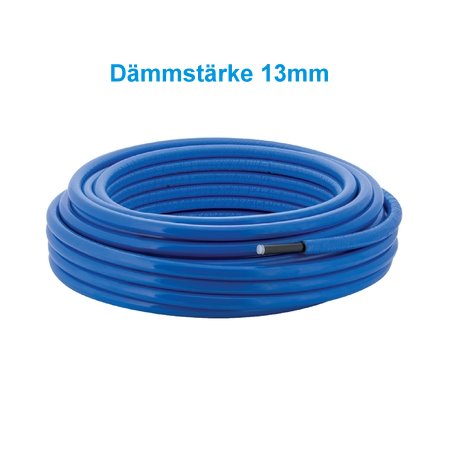

Geberit Mepla Multilayer Pipe 16mm x 50m in roll with 13mm insulation
Mepla multilayer pipe 16mm x 50m in roll with 13mm insulation
Scope of supply / equipment:
- Mepla multilayer pipe 16mm x 2.25mm Mepla- Flex
- Finish: with 13mm insulation
- Containers: roll 50 meters
- Manufacturer: Geberit
- Connection option: press connection
- Pressing contour executable by Mepla- system jaws
- Seal two O-rings
- Fittings PVDF (polyvinylidene fluoride) or gunmetal
- Suitable for connection to Mepla- system pipe
- Leaking Un grouted
- Permanently sealed connection
- Corrosion-resistant plastic construction
- Suitable for drinking water and heating installation
For more technical information:
- Operating pressure: max. 10 bar
- Operating temperature: max. 70 ° C and 80 ° C for water for heating
- Thermal conductivity of insulation: 0.04 W / m²xk
- Wasserdampfdiffusionsfästigkeit: 7000 y
Applicable for the following operating media:
- drinking water systems
- heating systems
- Compressed air system
- rainwater
- sea water
- cooling water
- process water
- nitrogen
- industrial application
