Geberit FlowFit Metal pipe connection bend 20mm 3/4" with insulation box, length: 1000mm
NEW

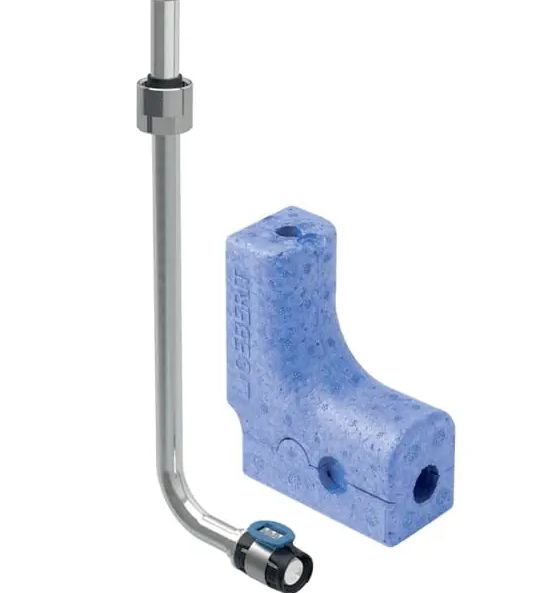

Geberit Flow Fit Connection bend with insulation box
Scope of delivery/equipment:
- FlowFit Elbow with Insulation Box
- Size: 20mm x 3/4" with Eurocone connection
- Length: 1000mm
- Manufacturer: Geberit
- Connection variant: press connection
- Press contour can be implemented with: Geberit system jaws
- Suitable for connection to FlowFit system pipe
- Leaks when unpressed
- Permanently tight connection
- Corrosion-resistant thanks to plastic design
- Suitable for drinking water and heating installations (also suitable for systems with glycol mixture).
Further technical information:
- Operating pressure: max. 10 bar
- Operating temperature: max. 70 °C for drinking water and 80 °C for heating
- Available in pipe diameters: 16, 20, 25, 32, 40, 50 and 65mm (select the appropriate fitting size for your connection under "Options").
Can be used for the following operating media:
- Drinking water systems
- Heating systems
- Compressed air system
- Rainwater
- Sea water
- Cooling water
- Process water
- Nitrogen Industrial application
