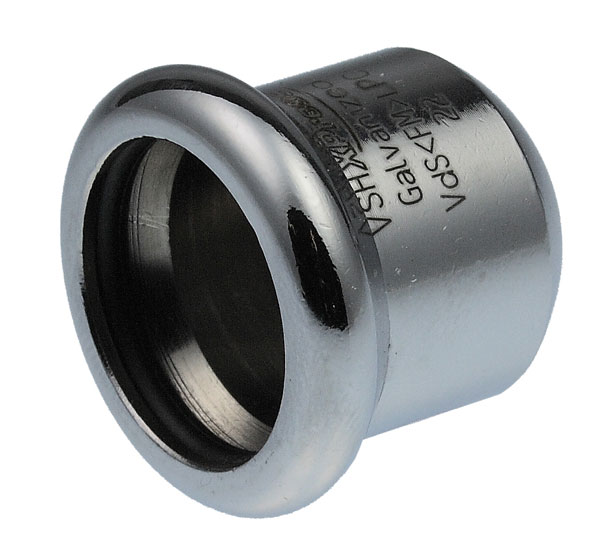

Carbon steel press fittings with "M" shape
Delivery / service: - C-steel press cap
- Connection variant: One inner sleeves (inside)
- Executed with pressing contour M jaws
- Thin-walled, precision steel tubes laser-welded according to DIN EN 10305-3, made of
- Quality steel (material no. 1.0034) with a very low carbon content
- The outside of the tube by a thermally zinc layer and an additional passivation
- protected by a chromate
- Pressed on leakage = LPB
- On request, we will (on request: Info@badshop-web.de) and carbon steel pipes at current prices in selected regions
For more technical information: - Operating pressure: max. 16 bar
- Oper. 135 ° C (with LBP-green seals up to 200 ° C)
- Available in tube diameter: 15, 18, 22, 28, 35, 42 and 54mm (Select "Options" the right fitting size of your connection).
Applicable for the following operating media: - heating systems
- Compressed air system
- Cooling water systems
- Sprinkler and fire water systems
- solar systems
