Wolf Brennwerttherme TOB-18 with 18 KW and promotional packagee 8906714C02

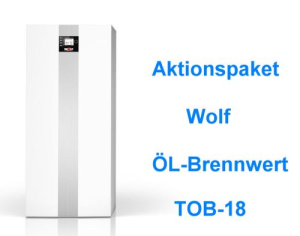

Wolf Brennwerttherme TOB-18 wall-mounted with 18 KW
and promotional package Programming module BM-2 and mixer module
and promotional package Programming module BM-2 and mixer module
Equipment:
- Brennwerttherme TOB-18 with operating module BM-2 and connection set heating circuit + mixer module
- Heat output 18 KW
- A Energieeffezienzklasse
- Clean combustion with a standard Nutzungsrad to 105% (Hi)
- Low electrical Energiebedar
- Suitable for low-sulfur and normal heating oil and bio-oil B10
- Blue flame burner for operating moduliernden
- Open flue and rauluftunabhängiger operation possible
- High quality Wäremtauscher from robust aluminum-silicon alloy
- Fully assembled and packed on pallets
- Directly on the wall mountable, thus little space required
- 5 years Gewährleisung and 24 months on electrical and moving parts
- Work number: 8906714F02
- CE-Identification number: CE 0085CO00305
Delivery:
- Wolf Brennwerttherme TOB-18
- incl. modulating blue flame burner
- Incl. Programming module BM-2

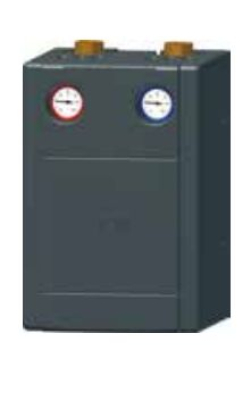

- Piping group Mixer circuit with energy saving pump 25-60 and wall mount

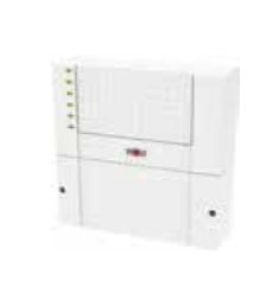

- Mixer module MM
- Security group TOB
- Wolf Connection Set TOB
- Mounting bracket for wall mounting
- Operating and assembly instructions
Technical information:
---> Brennwerttherme
- Nominal heat output at 80/60 ° C = 6.3 to 17.7 KW
- Nominal heat output at 50/30 ° C = 6.6 to 18.6 KW
- Max. Flow temperature: 80 ° C
- . Max tank pressure: 3 bar
- Condensate volume 1.4 liters / h
- Oil flow rate: 0.53 to 1.52 Kg / h
- Air / exhaust pipe diameter: 80 / 125mm
- Weight boiler system: 92kg
- Operating voltage: 230 Volt
- Height: 1290mm
- Width: 566mm
- Depth: 605mm

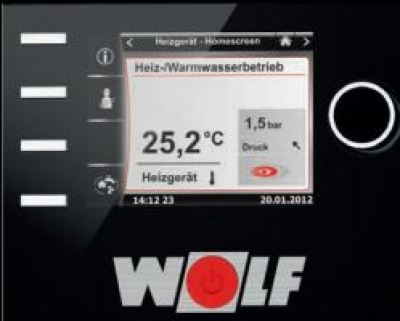

---> Regeler BM-2
- Weather compensated flow temperature
- 3.5 "display
- Time program for hot water, heating and circulation
- Operation by encoder with pushbutton function
- Micro SD card slot for Update
- Mounting in the controller or on wall bracket (accessory)
- necessary With multi-circuit system only an operating module
- Expansion with mixer module MM-2 up to 7 mixer circuits
- BM-2 extended as a remote control for ventilation system CWL
For more information, please visit the home page for this product.
