Wolf Brennwerttherme TOB-18 wall-mounted with 18 KW 8906714

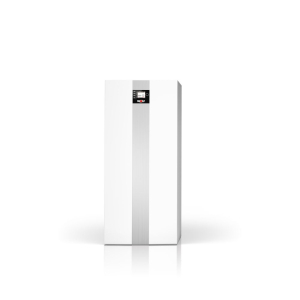

Wolf Brennwerttherme TOB-18 wall-mounted with 18 KW
Equipment:
- Brennwerttherme TOB-18 from Wolf
- Heat output 18 KW
- A Energieeffezienzklasse
- Clean combustion with a standard Nutzungsrad to 105% (Hi)
- Low electrical Energiebedar
- Suitable for low-sulfur and normal heating oil and bio-oil B10
- Blue flame burner for operating moduliernden
- Open flue and rauluftunabhängiger operation possible
- High quality Wäremtauscher from robust aluminum-silicon alloy
- Fully assembled and packed on pallets
- Directly on the wall mountable, thus little space required
- 5 years Gewährleisung and 24 months on electrical and moving parts
- Work number: 8906714
- CE-Ident.-Nr: CE-0085CO00305
Delivery:
- Wolf Brennwerttherme TOB-18 with no memory
- Incl. modulating burner Blue
- Mounting bracket for wall mounting
- Operating and assembly instructions
Technical information:
- Nominal heat output at 80/60 ° C = 6.3 to 17.7 KW
- Nominal heat output at 50/30 ° C = 6.6 to 18.6 KW
- Max. Flow temperature: 80 ° C
- . Max tank pressure: 3 bar
- Condensate volume 1.4 liters / h
- Oil flow rate: 0.53 to 1.52 Kg / h
- Air / exhaust pipe diameter: 80 / 125mm
- Weight boiler system: 92kg
- Operating voltage: 230 Volt
- Height: 1290mm
- Width: 566mm
- Depth: 605mm
For more information, please visit the home page for this product.
