olf oil condensing boiler COB-TS-15 8906468 with layered tank 89 08 101

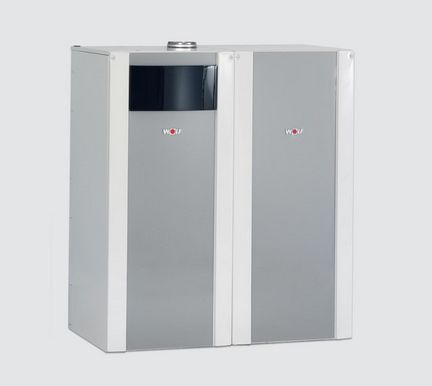

Wolf oil condensing boiler COB-TS-15 wall-mounted
with 15 KW and layered tank 160 liters
with 15 KW and layered tank 160 liters
Equipment:
- Oil condensing boiler COB-TS-15 from Wolf stratified storage
- Heat output 15 KW
- A Energieeffezienzklasse
- Clean combustion with a standard Nutzungsrad to 105% (Hi)
- Low electric power demand
- Suitable for low-sulfur and normal heating oil and bio-oil B10
- Two-stage blue flame burner
- Open flue and rauluftunabhängiger operation possible
- High quality Wäremtauscher from robust aluminum-silicon alloy
- Fully assembled and packed on pallets
- Directly on the wall mountable, thus little space required
- Control completely wired and used for a variety of needs
- 5 years Gewährleisung and 24 months on electrical and moving parts
- Work number: 8906468 (Therme) + 89 08 101 (memory)
- CE-Identification number: CE 0085BS0326
Delivery:
- Wolf condensing boiler COB-15
- Wolf stratified tank 160 liters
- Cylinder sensor Wolf
- Basic regulator in delivery (temperature heating / water, winter o. Summer mode, thermometer, chimney sweep button)
- Incl. 2-stage blue flame burner
- Mounting bracket for wall mounting
- Operating and assembly instructions
Technical information:
-> Brennwerttherme:
- Nominal heat output at 80/60 ° C = 9.0 or 14.4 KW
- Nominal heat output at 50/30 ° C = 9.5 to 15.1 KW
- Max. Flow temperature: 85 ° C
- . Max tank pressure: 3 bar
- Condensate volume 1.2 liter / hr
- Oil flow rate: 0.86 or 1.38 Kg / h
- Air / exhaust pipe diameter: 80 / 125mm
- Weight boiler system: 92kg
- Operating voltage: 230 Volt
- Height: 1290mm
- Width: 566mm
- Depth: 605mm
-> Layer memory:
- Nominal capacity: 160 liters of drinking water
- Equivalent content: 200 liters
- Memory continuous power: 370 liters at 15 KW
- Performance indicator: 3.5 NL
- Hot water output: 250 liters in 10 minutes
- Standby losses: 1.47 KW in 24 Hours
- . Max pressure cold water: 10 bar
For more information, please visit the home page for this product.
