Wolf oil condensing heating Special COB-15 with mixer circuit 8906468F02

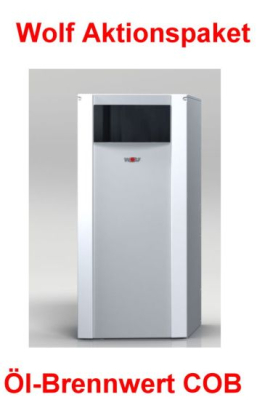

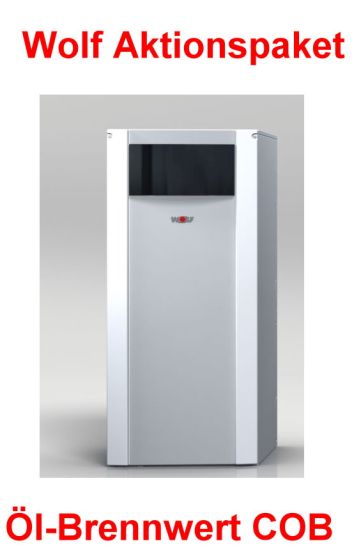

Wolf oil condensing boiler COB-15 wall-mounted
with 15 KW and BM programming module and mixer circuit station
with 15 KW and BM programming module and mixer circuit station
Equipment:
- Oil condensing boiler COB-15 from Wolf + mixer circuit station + BM programming module
- Heat output 15 KW
- A Energieeffezienzklasse
- Clean combustion with a standard Nutzungsrad to 105% (Hi)
- Low electric power demand
- Suitable for low-sulfur and normal heating oil and bio-oil B10
- Two-stage blue flame burner
- Open flue and rauluftunabhängiger operation possible
- High quality Wäremtauscher from robust aluminum-silicon alloy
- Fully assembled and packed on pallets
- Directly on the wall mountable, thus little space required
- Control completely wired and used for a variety of needs
- 5 years Gewährleisung and 24 months on electrical and moving parts
- Work number: 8906468F02
- CE-Identification number: CE 0085BS0326
Delivery:
- Wolf condensing boiler COB-15 without memory

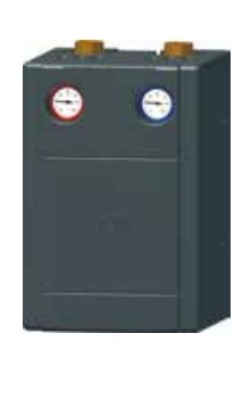

- With piping group Mixer circuit with wall bracket and self-regulating energy savings pump 25-60
- Mixer module MM
- BM programming module with external sensor
- Security group COB
- COB connection set
- Basic regulator in delivery (temperature heating / water, winter o. Summer mode, thermometer, chimney sweep button)
- Incl. 2-stage blue flame burner
- Mounting bracket for wall mounting
- Operating and assembly instructions
Technical information:
---> Brennwerttherme
- Nominal heat output at 80/60 ° C = 9.0 or 14.4 KW
- Nominal heat output at 50/30 ° C = 9.5 to 15.1 KW
- Max. Flow temperature: 85 ° C
- . Max tank pressure: 3 bar
- Condensate volume 1.2 liter / hr
- Oil flow rate: 0.86 or 1.38 Kg / h
- Air / exhaust pipe diameter: 80 / 125mm
- Weight boiler system: 92kg
- Operating voltage: 230 Volt
- Height: 1290mm
- Width: 566mm
- Depth: 605mm

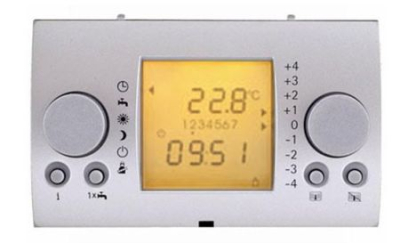

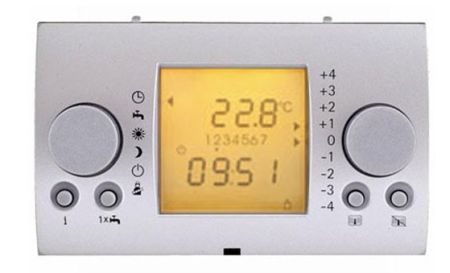

---> Controller BM
- Weather compensated flow temperature
- Time program for heating and hot water
- LCD display with Hintergurndbeleuchtung
- Time program for hot water, heating and circulation
- Operation by encoder with pushbutton function
- Mounting in the controller or on wall bracket (accessory)
- necessary With multi-circuit system only an operating module
- Expansion with mixer module MM-2 up to 7 mixer circuits

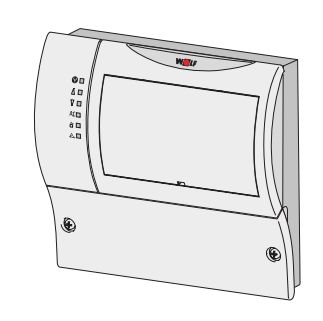

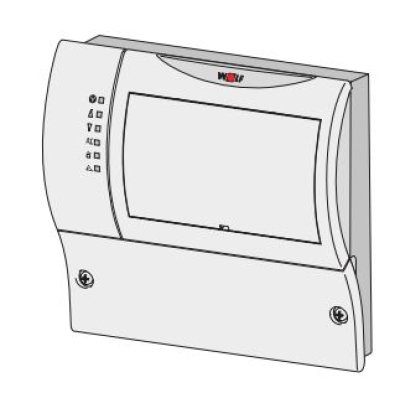

-> Mixing circuit module MM
- Expansion module for management of a mixer circuit
- Weather compensated flow temperature control
- Easy configuration of the controller through selection of investment options
- Rast 5 connection technology
- Incl. Flow sensor for the mixer circuit
For more information, please visit the home page for this product.
