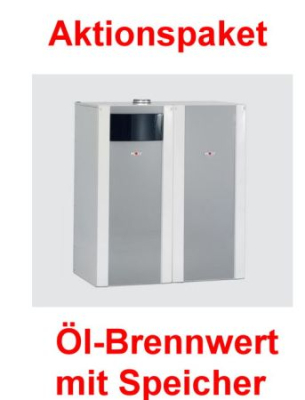

Wolf oil condensing boiler COB-TS-15 with heating circuit Aktionspaket 8906468F10

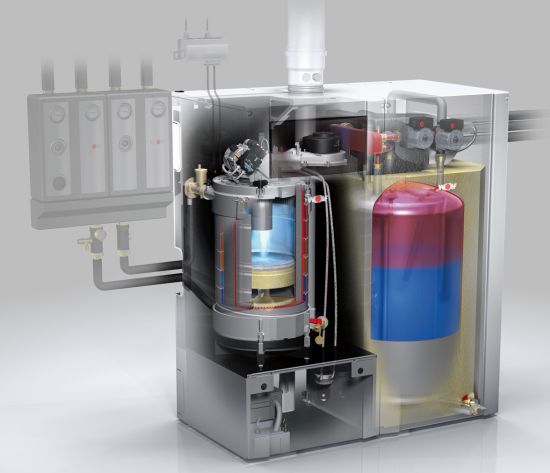

Wolf oil condensing boiler COB-TS-15 wall-mounted
with 15 KW and layered tank 160 liters,
BM programming module and heating circuit station
with 15 KW and layered tank 160 liters,
BM programming module and heating circuit station
Equipment:
- Oil condensing boiler COB-TS-15 from Wolf stratified storage + BM programming module + heating circuit station
- Heat output 15 KW
- A Energieeffezienzklasse
- Clean combustion with a standard Nutzungsrad to 105% (Hi)
- Low electric power demand
- Suitable for low-sulfur and normal heating oil and bio-oil B10
- Two-stage blue flame burner
- Open flue and rauluftunabhängiger operation possible
- High quality Wäremtauscher from robust aluminum-silicon alloy
- Fully assembled and packed on pallets
- Directly on the wall mountable, thus little space required
- Control completely wired and used for a variety of needs
- 5 years Gewährleisung and 24 months on electrical and moving parts
- Work number: 8906468F10
- CE-Identification number: CE 0085BS0326
Delivery:
- Wolf condensing boiler COB-TS-15
- Wolf stratified tank 160 liters
- Cylinder sensor Wolf

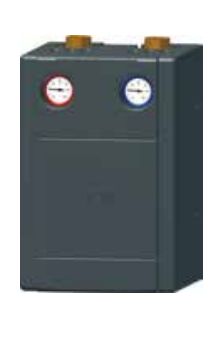

- With pipework group Heating circuit with wall bracket and self-regulating energy savings pump 25-60
- BM programming module with external sensor
- Security group COB
- COB connection set
- Basic regulator in delivery (temperature heating / water, winter o. Summer mode, thermometer, chimney sweep button)
- Incl. 2-stage blue flame burner
- Mounting bracket for wall mounting
- Operating and assembly instructions
Technical information:
-> Brennwerttherme:
- Nominal heat output at 80/60 ° C = 9.0 or 14.4 KW
- Nominal heat output at 50/30 ° C = 9.5 to 15.1 KW
- Max. Flow temperature: 85 ° C
- . Max tank pressure: 3 bar
- Condensate volume 1.2 liter / hr
- Oil flow rate: 0.86 or 1.38 Kg / h
- Air / exhaust pipe diameter: 80 / 125mm
- Weight boiler system: 92kg
- Operating voltage: 230 Volt
- Height: 1290mm
- Width: 566mm
- Depth: 605mm
-> Layer memory:
- Nominal capacity: 160 liters of drinking water
- Equivalent content: 200 liters
- Memory continuous power: 370 liters at 15 KW
- Performance indicator: 3.5 NL
- Hot water output: 250 liters in 10 minutes
- Standby losses: 1.47 KW in 24 Hours
- . Max pressure cold water: 10 bar

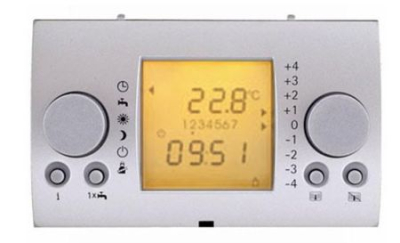

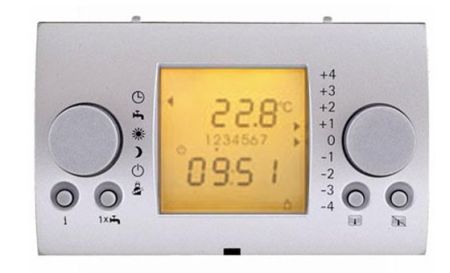

---> Controller BM
- Weather compensated flow temperature
- Time program for heating and hot water
- LCD display with Hintergurndbeleuchtung
- Time program for hot water, heating and circulation
- Operation by encoder with pushbutton function
- Mounting in the controller or on wall bracket (accessory)
- necessary With multi-circuit system only an operating module
- Expansion with mixer module MM-2 up to 7 mixer circuits
