Heat meter Elster F90-M3 exchange for Allmess counting unit , Qn = 0.6 ms ³ / h
Heat meter Elster F90-M3 exchange for Allmess counting unit , Qn = 0.6 ms ³ / h
Heat meter Elster F90-M3 exchange for Allmess counting unit , Qn = 0.6 ms ³ / h

Heat meter Elster F90-M3 exchange for Allmess counting unit , Qn = 0.6 ms ³ / h

Product No.:
5047FU
Unkown shippingtime (abroad may vary)
Weight:
2.9 kg per piece
250,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

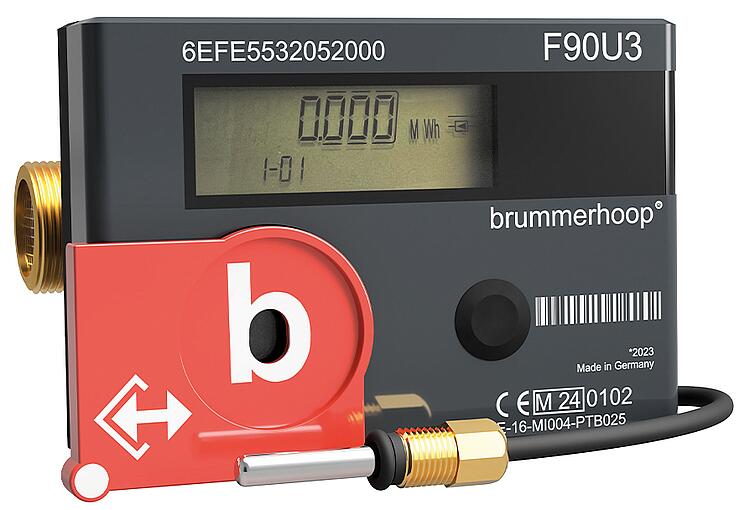

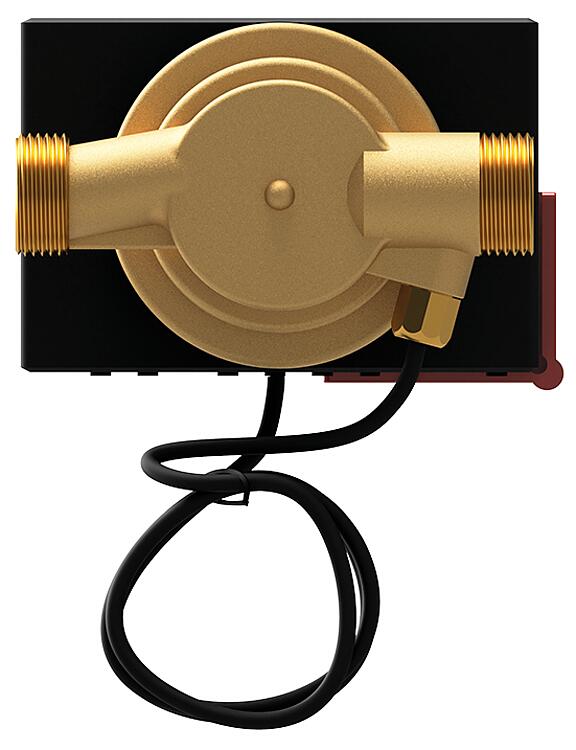

Heat meter Elster F90-M3 exchange for Allmess Counting unit

Scope of delivery:

  • Elster heat quantity exchange for Allmess counting unit
  • Type F 90-M3
  • Including certification fee
  • Detachable display unit with 0.5 meter cable
  • Installation Standard in the return
  • Replaceable battery
  • Large LCD display
  • Corrosion resistant measuring parts
  • MID combo
  • Storage of the maximum values
  • Free slot for option module



Technical specifications:

  •  Volume flow (Qn) = 0.6m³ / h
  •  In exchange for Allmess counting unit
     Connection size: M77 x 1.5
  •  Cable length: 1.5 meters
  • Installation possible horizontally and vertically
  • Operating pressure: 16 bar
  • Protection class: IP 65
  • Battery holds 10 years
  • Ambient temperature: 5 - 55 ° C
  • Material: brass
