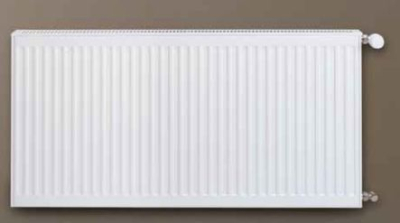

Viessmann compact radiators type 33, 400 x 1200mm (HxL)
Viessmann compact radiator
Scope of supply / equipment:
- With 4 connection sockets G 1/2 "internal thread
- Rotary for the equilateral or reciprocal connection
- Welded side trim and easily removable top cover
- Operating temperature up to max. 110 ° C
- Operating pressure up to 10 bar
- Made in Germany
- Thermal output to EN 442
- Epoxy powder coating in accordance with DIN 55900, color RAL 9016
- Environmentally-friendly ATL primer
- Delivery without wall support, thermostatic head and valve kit (please order separately)
Valve specifications radiator:
- Height: 400 mm
- Overall length: 1200 mm
- Depth: Type 33 (161 mm)
- Application: Hot water heating systems to DIN 4751
- Material: High quality steel to DC 01
- Sick division: 33 1/3 mm
- Connectors: 4 x G1 / 2 inch
- Permissible operating pressure: max. 10 bar (13 bar test pressure)
- Operating temperature: max. 110 ° C
- 70/55 ° C = 1655 Watt
- 55/45 ° C = 1049 Watt
These accessories can be selected:

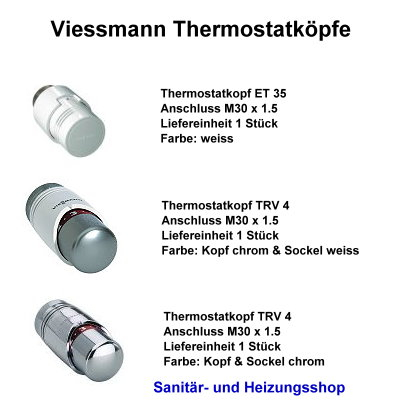

Thermostatic Heads
- Viessmann thermostatic head ET 35 with antifreeze, color: white
- Viessmann thermostatic head TRV 4 with temperature limiter, color: head chrome base & white
- Viessmann thermostatic head TRV 4 with temperature limiter, Color: Chrome

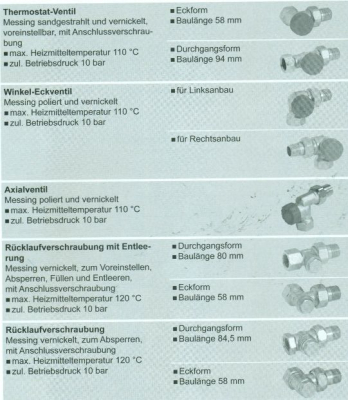

THERMOSTAT VALVES AND lockshields
- Viessmann thermostatic valve for the flow in angle pattern, straight pattern, nosing shape (right or left) and axial forming, size DN 15 = 1/2 "
- Viessmann lockshields plated for the return angle-type and straight type, size DN 15 = 1/2 "
The thermostatic valves are shipped with default options for the "hydraulic balancing".
MOUNTING

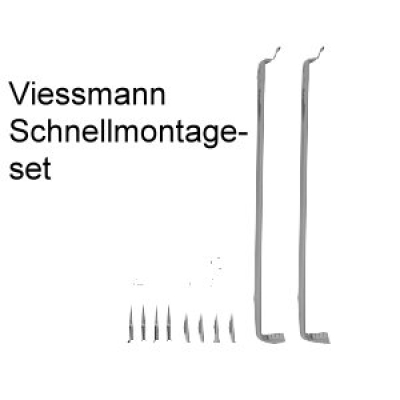

- Viessmann Quick assembly set for wall mounting with (2 Federzugkonsolen, 4 screws and 4 wall plugs) Fits the offered radiators

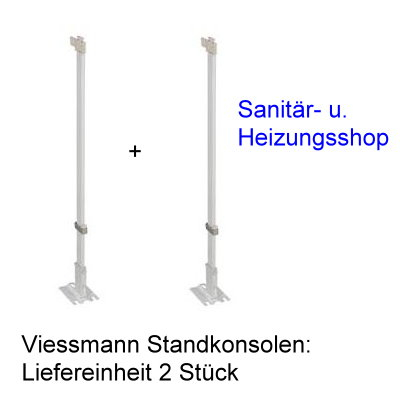

- Viessmann stand brackets (2 pieces) incl. Assembly and fastening material
Delivery possible only after Germany.
Delivery in different RAL colors possible
