Viessmann compact radiator M valve type 33, 300 x 1200mm (HxL)
Viessmann compact radiator valveavec une connexion moyenne
Scope of supply / equipment:
- With sealed valve, air and blanking plug
- Factory integrated valve set with 4 pipe fittings G1 / 2² internal thread
- Welded side panel and easily removable top cover
- Operating temperature up to max. 110 ° C.
- Operating pressure up to 10 bar
- Made in Germany
- Heat capacity according to EN 442
- Epoxy powder coating according to DIN 55900, color RAL 9016
- Environmentally friendly ATL-prime
- Supplied without wall bracket, thermostat head and valve block (please order separately)
Technical data valve radiator:
- Overall height: 300 mm
- Overall length: 1200 mm
- Depth: Type 33 (161 mm)
- Application: Hot-water heating systems according to DIN 4751
- Material: high quality steel by DC 01
- Sick Pitch: 1.3 mm 33
- Connections: 4 x G1 / 2 inches
- Allowable operating pressure: max. 10 bar (13 bar test pressure)
- Permissible operating temperature: max. 110 ° C.
Heat capacity at system temperatures:
- 70/55 ° C = 1415 Watts
- 55/45 ° C = 895 Watts
These accessories can be selected:

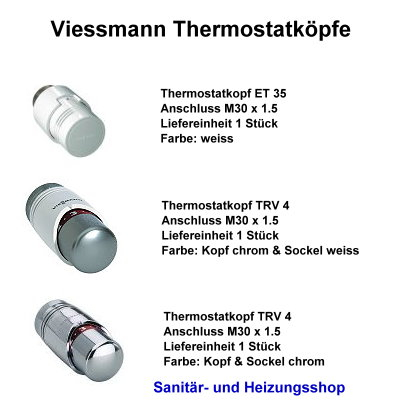

THERMOSTAT HEADS
- Viessmann thermostatic head ET 35 with antifreeze, color: white
- Viessmann thermostatic head TRV 4 with temperature limiter, color: chrome head & base white
- Viessmann thermostatic head TRV 4 with temperature limiter, Color: Chrome
CONNECTING FITTINGS R1 / 2 "external thread x 3/4" (tube side)
- Viessmann cock block passage two-pipe system
- Viessmann cock block passage monotube system
- Viessmann cock block angle-type two-pipe system
- Viessmann cock block angle-type two-pipe system
MOUNTING

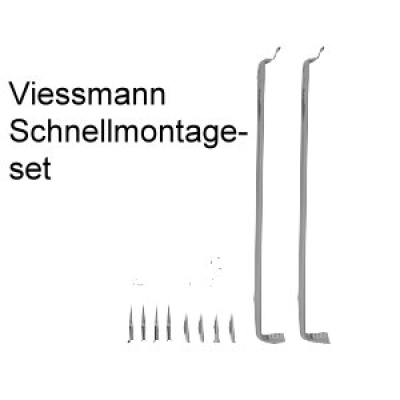

- Viessmann Schnellmontageset for wall mounting with (2 Federzugkonsolen, 4 screws and 4 plugs) is compatible with the offered radiator

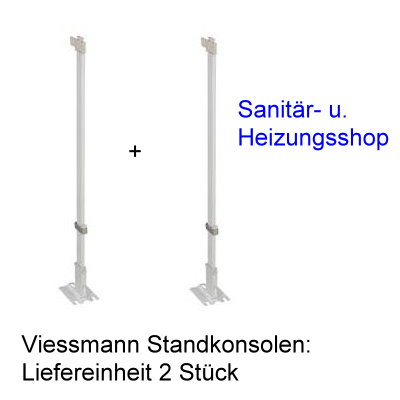

- Viessmann stand brackets (2 pieces) incl. Assembly and fastening material
Delivery possible only after Germany.
Delivery in different RAL colors possible
Request under info@badshop-web.de
For more information, please visit the home page for this product.
