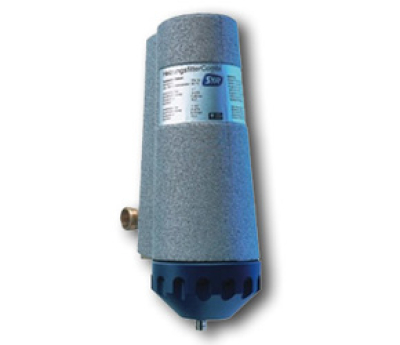

SYR Heating Filter DN 32
SYR Heating filter in 3315 DN 32
Scope of supply / equipment:
- SYR Heating filter in 3315
- Connection size: DN 32
- Cross flange to the vent pipe and Entschlammung of closed heating systems
- Case from Pressmessing
- Incl. insulating bowl, roadblock, pressure-less, manometre, Systemtrenner AC
- For the filtration of heating water
- Operating instructions and assembly instructions in the scope of supply
- Work number: 3315.00.000
Technical information:
- Max working pressure: From 1.5 to 10 cash
- Max operating temperature: 90°C (filter)
- Medium: Heating water
- Location: waagrecht with funnel down
- Filling performance: 3.0 m ³ / H with a pressure difference of 0.08 cash
- Connection size: DN 32
Functional description:
The heating filter Combi SYR in 3315 becomes used in hot water heating circulations to German Institute for Standardization EN 12828, the filtration and degassing. Coarse and fine-grained pollutions (e.g., the rust muds) which can lead to malfunctions in controlling bodies and control organs remove the efficient filter combination just as annoying and corrosive gases (e.g., nitrogen, oxygen). Cross flange serves of the heating filters SYR performed in the accessories for the assembly in the conduit.
