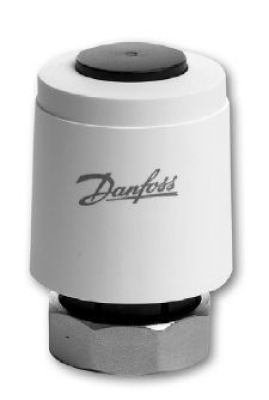

Danfoss Set Impulse TWA-K/NC stream closed 24 V - 088H3140

Scope of supply:


• Danfoss set impulse TWA
• Product instructions and operating instructions
• Work number: 088H3140

Functional description:

• Thermal set impulse for Anschlus M30 x 1.5 mm
• For valves and under-floor heating distributors suitable

Technical information central device:

• Operating voltage: 24 volts
• Valve function: NC
• Without stream closed
• Average achievement admission: 2 watts
• Frequency: 50 - 60 hertz
• Approach stream: 350 mA
• Surroundings temperature: From 0 to 60 °C
• Protective kind: IP 41
• Cable length: 1200 mm
• Set strength: 100 N
• Schließmaß: 11.8 + - 0.3 mm

Further information about the installation: Assembly video

Danfoss link HC under-floor heating regulator
Product instructions and operating instructions
Work number: 014G0100

Functional description:

For the integration of wireless under-floor heating systems
Up to 10 exits (24 volts) for max. 13 set impulses of the under-floor heating
Suitable for NC or set impulses NO
Relay for pumps or kettle control
Automatic Seblstdiagnose to the announcement of different mistakes

Technical information central device:

Operating voltage: 230 V / Ac
Number of the exits and tension: 10 pieces / 24 volts
Transference achievement: <1 mW
Transference frequency: 868.42 MHz
Reach: 30 metres
Max load for pumps and kettle relay: 230 volts / 8 A
Cable length: 1.5 metres
Protective kind IP: 30
Dimension (L x H xT): 325 x 78 x 47 mm
