Delta Oil Pump A2 R2

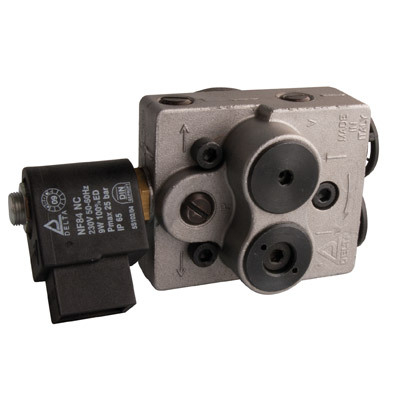

Delta oil pump with magnet valve type A2 R2
Scope of supply / equipment:
- Delta oil pump with magnet valve
- Type: Type A2 R2
- Nozzle performance: 50 litres with 10 cash
- Universal oil distiller's pumps of aluminium
- Particularly suitably as a compact service pump with cramped place relations
- Rotation direction: Variably (on the right or on the left)
- Work number: Type A2 R2
Technical information:
- Vsikositätsbereich: 1.2 – 12 mm ² / see
- Oil temperature: max. 60°C
- Pressure area: 6 – 20 cash
- Saugseitiges vacuum: max. 0.5 cash
- Saugseitiger pressure: max. 2 cash
- Operating system: Einstrang or 2 rope
- Measuring connections printing / vacuum: DN6 (1/8“)
- Nozzle connection: DN6 (1/8“) on both sides
- Connections preliminary heat and return: DN8 (¼“)
- Dimensions (EN 225): Hub ø 32, shaft ø 8
- Reel 230 V, 50/60 hertz
- Rev: max. 3,500 Upm
Replaceable against the following continued existence pumps:
- VM1-LL1 - A1-L1
- VM1-LR1 - A1-L1
- VM1-LL2 - A1-L2
- VM1-LR2 - A1-L2
- VM1-RL1 - A1-R1
- VM1-RR1 - A1-R1
- VM1-RL2 - A1-R2
- VM1-RR2 - A1-R2
- VM2-LL1 - A2-L1
- VM2-LR1 - A2-L1
- VM2-LL2 - A2-L2
- VM2-LR2 - A2-L2
- VM2-RL1 - A2-R1
- VM2-RR1 - A2-R1
- VM2-RL2 - A2-R2
- VM2-RR2 - A2-R2
