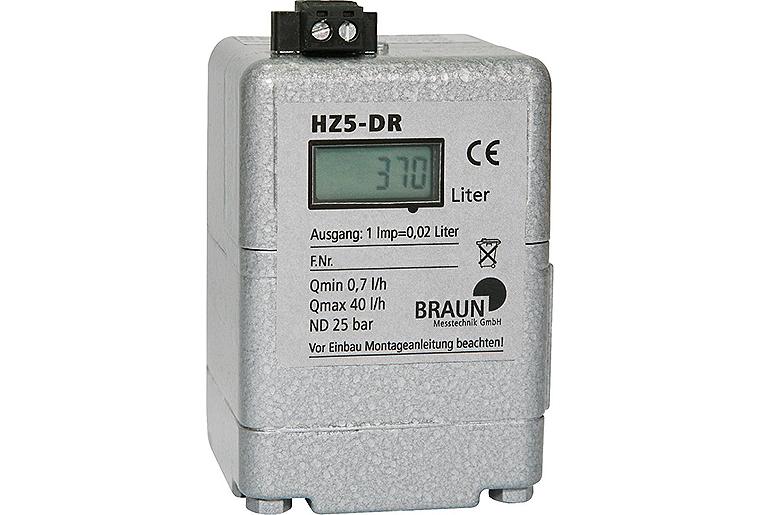

Oil counter Braun HZ 5 DR with pulse output

Scope of delivery and equipment:


•      Oil counter Braun HZ 5 DR with pulse output
•      For recording the flow rate for oil heating systems
•      Oil consumption easy to read
•      Fits all combustion products
•      Suitable for installation between burner pump and nozzle in the oil line
•      Manufacturer: Braun
•      Number of works: HZ 5 DR

Technical description:


• Measurement accuracy: +/- 1%
• Display range: 0.1 to 99 999.98 liters
• Nominal pressure: 25 bar
• Pressure loss: 0.1 to 0.2 bar
• Fuel oils: EL and L
• Temperature range: max. 60 ° C
• Connection thread: • DN6 (1/8 ") inside cylindrical (only with enclosed aluminum seals)
• Dimensions (H x W x D): 85 x 60 x 60 mm
• Weight: 0.6 kg
• 6-digit LCD counter
• Power supply: Lithium-ion battery with 9 years lifetime
• Reed contact Pulse output
• Pulse value: 1 pulse = 0.02L / 50 pulses = 1L
• Connection via screw terminals
• Flow range: 0.7 to 40 l / h = 0.6 to 34 kg / h
• Boiler capacity: 7 KW up to 400 KW
