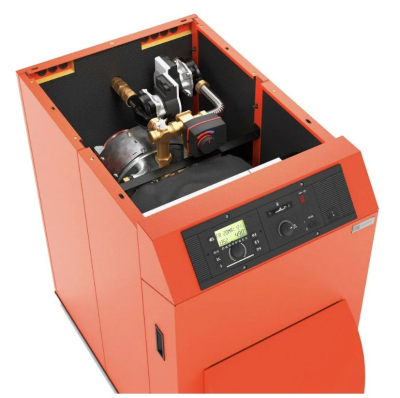

ECOHEAT OIL condensing boiler Premium Plus 15 to 25 KW

Scope of delivery:


•      Boiler plant ECOHEAT Premium Plus
•      Manufacturer: Intercal
•      GG20 cast iron sectional boiler
•      Type: Floor Standing
•      Incl. voreingestelten blue burner and base panel
•      Optional ECOHEAT control
•      Neutralizer is included
•      Operating and installation instructions

technology:


•      Heat output from 15 to 25 KW (free selectable)
•      Efficiency up to 103.9%
•      Exhaust temperature 60 -68 ° C (60 ° C return temperature)
•      Boiler weight 155-185 KG

Description:

Oil condensing boiler in efficiency class “A” with a nominal output range of 11-37 kW

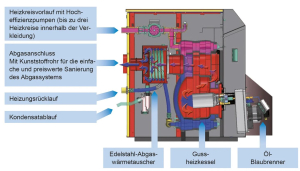

Long-lasting, proven cast iron boiler Efficient stainless steel exhaust gas heat exchanger type RWT 7 or RWT 10 with cleaning openings for easy and quick annual maintenance without dismantling the heat exchanger Integrated blue burner from the Intercal BNR series that is warmly preset to the respective boiler type Quiet operating noise thanks to a stable, fully encapsulated boiler housing Simple subsequent conversion to an Intercal SGN 100 H gas burner in natural or liquid gas version (up to 25 kW) Depending on the version (medium, premium) or accessories, up to 3 heating circuits direct, Mixer and storage circuit possible internally Depending on the version (Medium, Premium), assembled and electrically prepared ex works Weather-compensated control suitable for the design Lower installation depth and simpler exhaust accessories thanks to the integrated exhaust temperature limiter Room air-independent operation possible up to 26.5 kW The use of high-quality materials and standard components, such as the Intercal standard blue burner or a basic boiler control panel with a standard boiler controller cutout, means long-term operational reliability and flexibility through a simple supply of spare parts heatapp! Control for #smarthome. Feel-good warmth on the go via app -in conjunction with the THETA+ control and the heatapp base (accessory)


Accessories Premium version:


Premium version: Pre-assembled THETA+ 23 B control for an unmixed heating circuit, a mixed heating circuit and control of hot water preparation including the necessary sensors. Integrated, pre-assembled direct circuit including high-efficiency pump. Integrated, pre-assembled mixer circuit including high-efficiency pump, 3-way mixer and servomotor.
