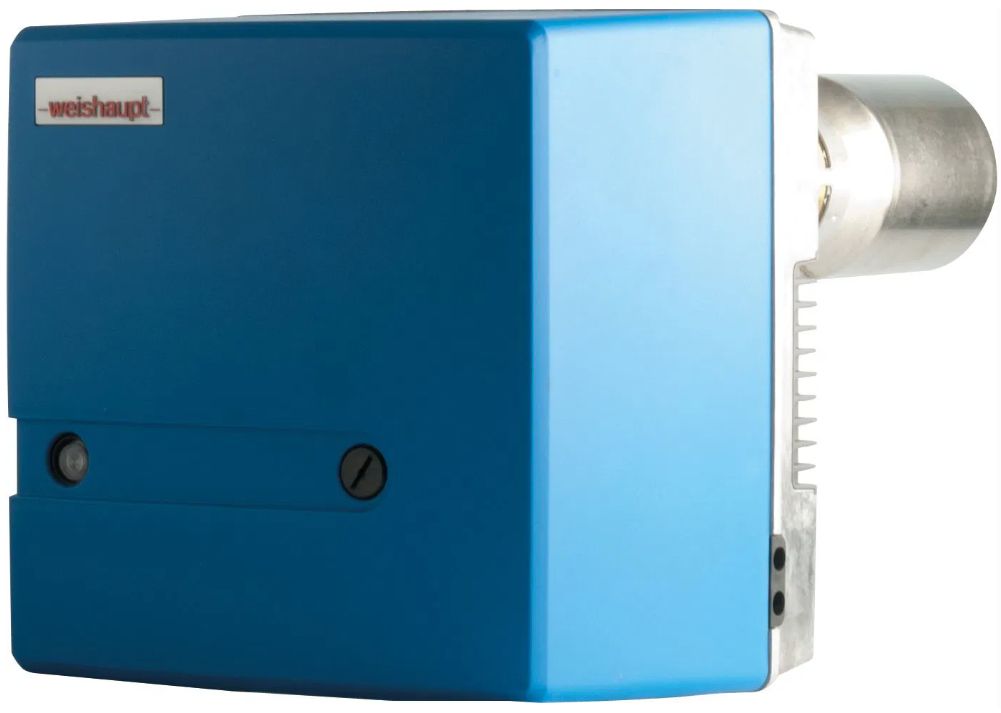

Weishaupt WL5 purflam oil-fired blue flame burner, 16.5-20 kW
NEW
Weishaupt Oil Burner
Scope of delivery:
- Weishaupt WL5 purflam oil-fired blue flame burner, 16.5-20 kW
- Fully automatic, single-stage operation with start-up relief
- Installed oil nozzle and oil preheater
- Soundproofed burner housing
- Standard sliding flange for easy adjustment to the combustion chamber depth
- Quick-release fasteners for easy maintenance
- Air intake selectable on the right or left
- Special mixing unit for soot-free combustion
- Speed-controlled combustion air blower for energy-saving operation
- Heated nozzle head (Weishaupt system) with shut-off valve and no-air insert for rapid venting
- Electronic ignition unit with interference-suppressed ignition leads
- Microprocessor-controlled combustion manager with LED display, eBus connection, and fault output
- Coded connectors on the burner
- Operating and Installation Instructions
Technical Information:
- Burner output: 16,5 - 20 kW
- Power supply: 230 V / 50 Hz
- Weight: 7.5 kg
