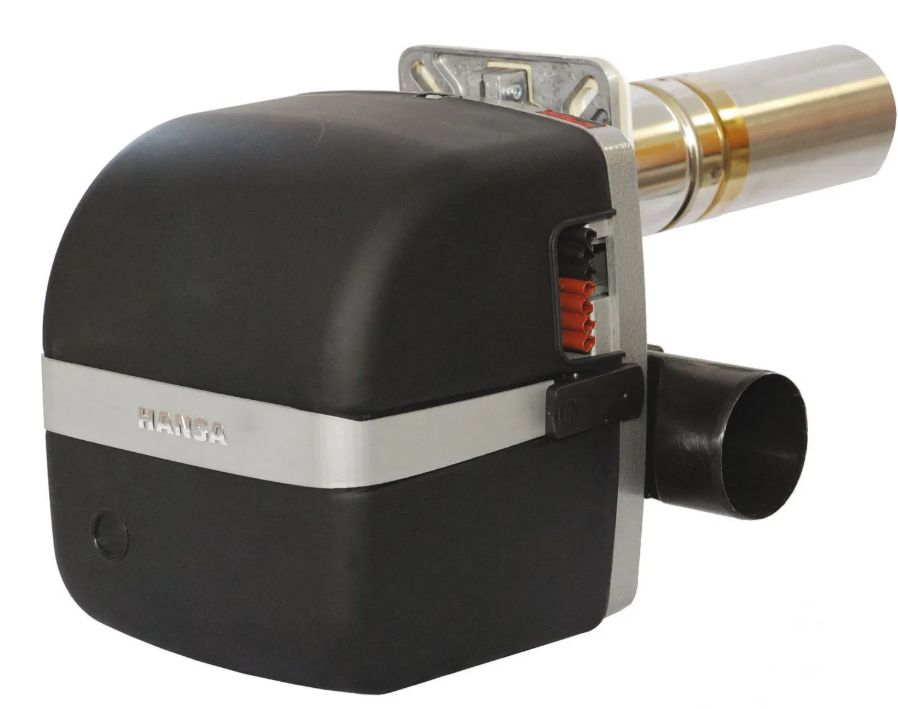

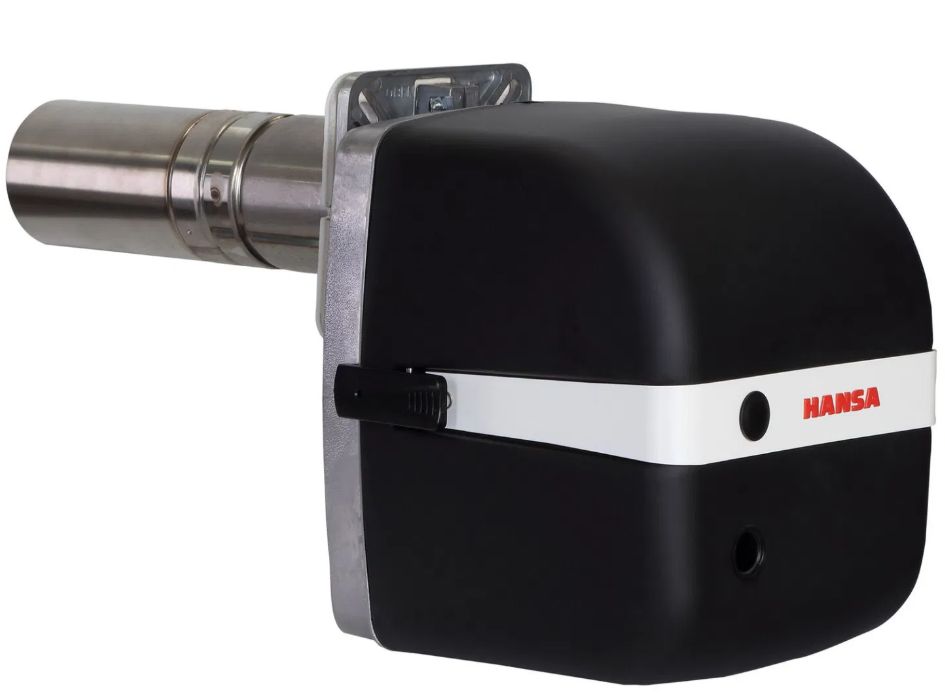

Hansa Blue Burner HB 40.1, 24-32 kW
Hansa Blue Burner HB 40.1, 24-32 kW
Preview: Hansa Blue Burner HB 40.1, 24-32 kW
Preview: Hansa Blue Burner HB 40.1, 24-32 kW
Hansa Blue Burner HB 40.1, 24-32 kW
Hansa Blue Burner HB 40.1, 24-32 kW
Hansa Blue Burner HB 40.1, 24-32 kW
Mobile Preview: Hansa Blue Burner HB 40.1, 24-32 kW
Mobile Preview: Hansa Blue Burner HB 40.1, 24-32 kW
NEW

Hansa Blue Burner HB 40.1, 24-32 kW

Product No.:
5561FU
Unkown shippingtime (abroad may vary)
989,90 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

Hansa Oil Burner

Scope of delivery:
  • Hansa Blue Flame Burner HB  40.1, 24-32 kW
  • Equipped with a 0.40 80° S nozzle, corresponding to approximately 22 kW
  • With integrated oil preheating system (DropStop, nozzle-independent)
  • A LowNOx precision mixing unit ensures low-emission combustion
  • with a blue flame and guarantees simple yet precise adjustment of the oil-air mixture ratio.
  • An optimized high-performance fan ensures reliable starting and stable combustion.
  • The suction and pressure-side air regulation allows for precise air volume adjustment, even at lower output levels.
  • Operating and Installation Instructions

Technical Information:
  • Burner output: 24-32 kW
  • Oil consumption: 0.9 - 1.8 kg/h
  • Power consumption: approx. 185 W
  • Mains connection: 230 V / 50 Hz
  • Weight: 12.0 kg
  • Flame tube diameter: 147 mm
  • Flame tube dimensions: 87 × 167 mm
