Energy savings pump Grundfos alpha 1 GO 25-80 (130mm) Work number 93074199
NEW

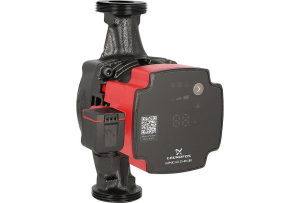

Grundfos energy savings pump alpha 1 GO 25-80 (130mm)
- NEW Modell -
- Grundfos Alpha 1 GO 25-80 energy-saving pump
- Highly efficient circulation pump for heating and air conditioning systems
- With Bluetooth LE interface for communication with the Grundfos GO app via QR code on the pump
- Guided commissioning possible via the app
- Automatic self-venting with air bubble detection and dry-run protection
- Replacement pump also for built-in boiler pumps
- The ALPHA1 GO XX-80 can replace almost 70% of integrated Grundfos circulation pumps and most individually installed circulation pumps
- Compatible with most UPS circulation pumps
- Factory settings of the existing pump can be adopted via the app
- Control modes: Constant pressure, proportional pressure, constant flow rate and constant characteristic curve, AUTOADAPT, PWM input

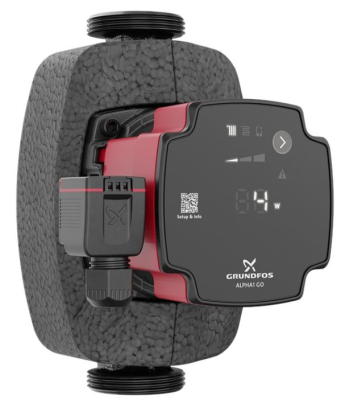

- Including thermal insulation shell
- Supplied without screw connection
- Serial number: 93074199
- Max. head: 8.0 Meter
- Length: 130mm
- Voltage: 230 Volts
- Motor protection included
- Protection class: IP 44
- Medium temperature range: -10°C to +110°C
- Operating pressure: 10 bar
Can be used on the following systems:
- Storage charging of domestic hot water
- Charging of a wood-fired boiler or fireplace with a water tank
- Heating registers of ventilation systems
- Cooling registers of ventilation systems
- Charging of buffer storage tanks
Not an EU product manufactured for the German market!
