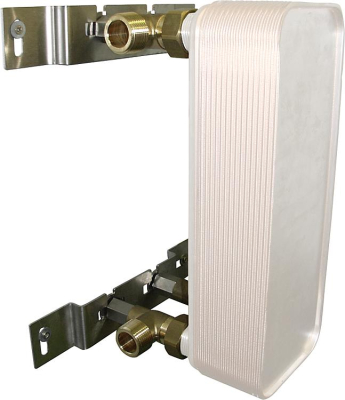

Plate heat exchanger wall mounting PT
equipment:
- Plate heat exchanger for wall mounting PT
- Incl. 4 Eckverschraubungen for connecting a Wäremtauscher

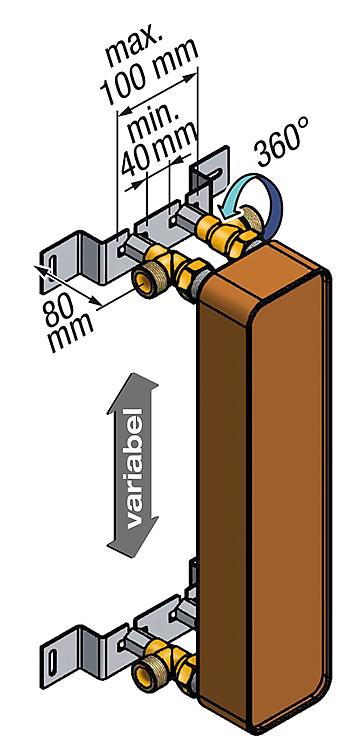

- Suitable for heat exchangers with a center distance from 40 to 100mm
- Rotatable by 360 ° connectors
- Female on the Eckverschraubungen for thermowell, thermometer or emptying
Scope of delivery:
- 4 x Eckverschraubung with internal threads in sheets
- 4 x Stainless Steel Plug 1/2 "male thread
- 2 x Stainless steel rail for wall mounting
- 4 x M10 mounting bolts with washer
The product is available in the following size
- DN 20 = Suitable for Series 10/16 to 30/40
- DN 25 = Suitable for Series 35/10 to 60/20
- DN 32 = Suitable for Series 60/24 to 60/50
