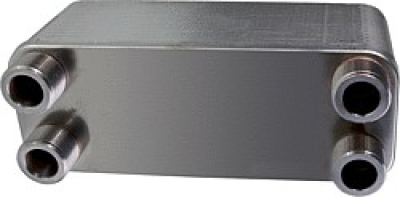

Plate heat exchanger for solar PT and heating
PT plate heat exchanger for solar and heating
Scope of supply / equipment:
- Plate heat exchanger PT
- Brazed heat exchanger
- Plate material: Stainless steel 1.4401
- Thread: 4 x male thread
- Suitable for use with glycol up to 40%
- without Insulation
- Incl. manual
Technical details:
- Perm. Operating Temperature -50 ° C to 200 ° C
- Operating pressure: 10 bar (10/16 to 30/40) and 30 bar (35/10 to 60/50)
Connection size:
- Plate number 10/16 to 30/40 = DN20 (3/4 ")
- Plate number 35/10 to 60/20 = DN 25 (1 "male)
- Plate Number 60/24 to 60/50 = DN32 (1 1/4 ")
Suitable for the following applications

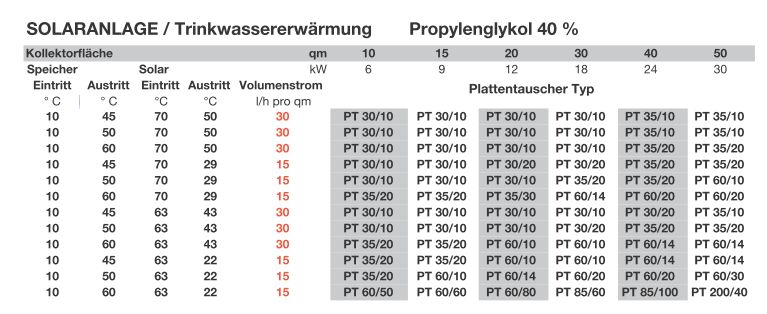

1. Solar / DHW heating:

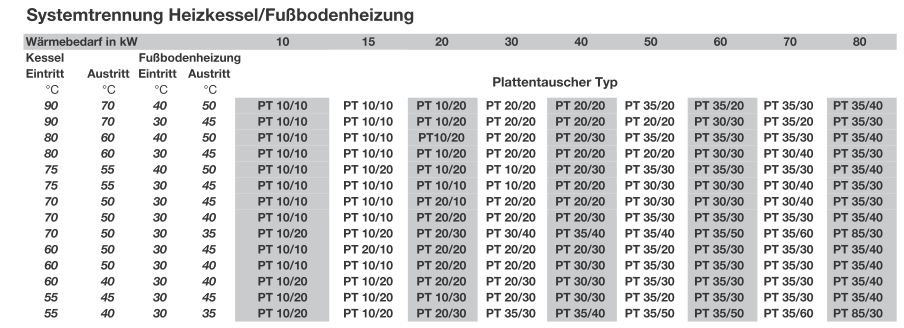

2. Separation system boiler / floor heating

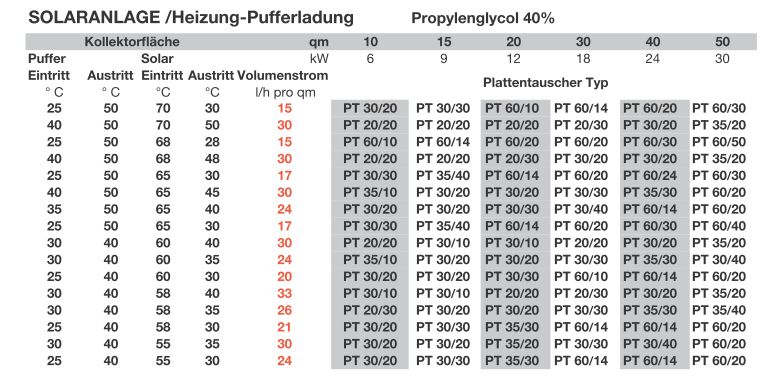

3. Solar / heating buffer charge

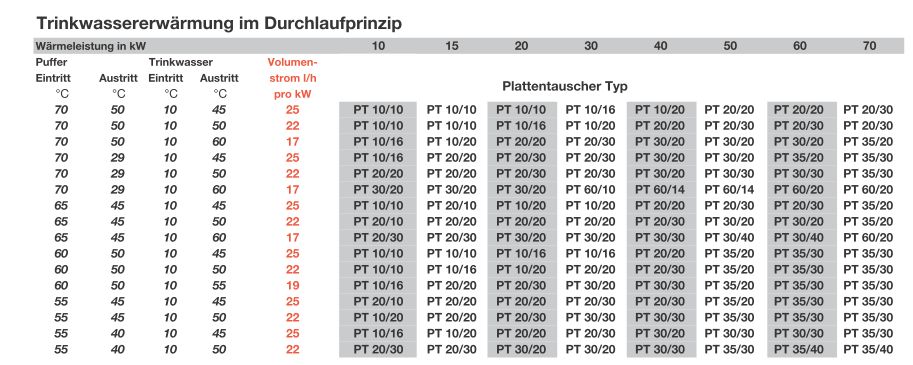

4. DHW heating in continuous flow mode
The following accessories we carry in shop:
- Wall bracket for heat exchanger
- Multifunction Ball Valve Set for Wäremtauscher
- Verschraubungssatz just
- Verschraubungssatz angle pattern
- EPP insulation for Wäremtauscher
- PUR insulation for heat exchanger
