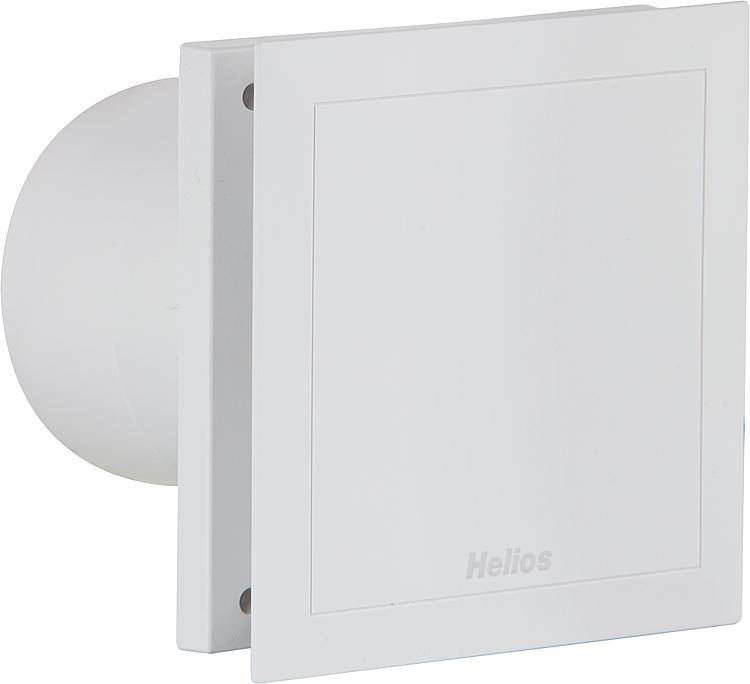

Helios Small fan M1 / 100 N/C with codable caster and intermittent operation 6172
Helios Small fan M1 / 100 N/C with codable caster and intermittent operation
Scope of supply / equipment:
- Blower unit (fan) M1 / 100 N/C with codable caster and intermittent operation
- Incl. white plate and ultraSilence® technology
- Integrated connector for electrical connection
- Maintenance-free ball bearing motor
- Catalog number: 6172
Technical specifications
- Construction: Axial
- Power supply: 3 x 1.5mm²
- Delivery volume: 75/90 m³ / h
- Pressure max .: 36/45 PA
- Sound pressure 25/30 dB (A)
- Voltage: 230 V / 50 Hz
- Power consumption: 5/9 W
- Protection class: IP 45
- Nominal width: 100 mm
- Speed adjustable: no
- Two power levels

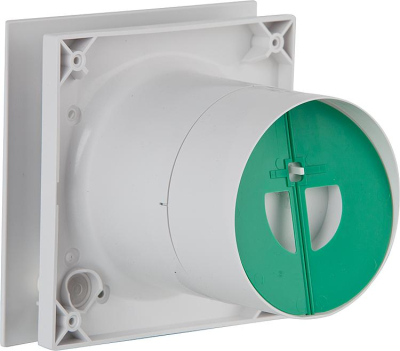

- Return air valve
- Protection area 1 of wet rooms
Application:
- For bathroom, toilet, storage room, cellar etc.
- Ventilation of internal rooms
- Installation: ceiling / wall
- Mounting directly over the outer wall or a telescopic tube
- Protection area 1 of wet rooms
