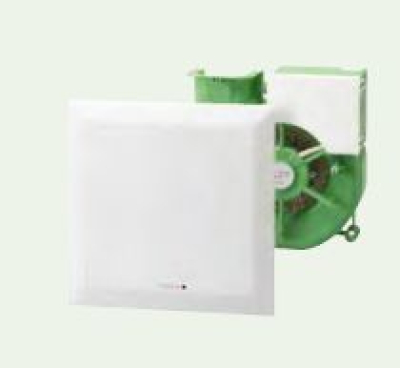

Blower unity Helios ELS-VNC 100 with codable overrun and interval operation Serial No: 8144
Helios ELS-VNC 100 with codable overrun and interval operation
Scope of supply / equipment:
- Blower unit (fan) ELS-VNC 100
- Incl. Cover plate alpine white and ultraSilence ® technology
- Permanent filter insert
- Integrated plug connector for electrical connection
- Maintenance-free, energy saving ball bearing motor
- With filter cleaning indicator
- Serial No.: 8144
Technical Information:
- Air flow 100 m³ / h
- 1 power stage
- Double insulated Class II (IP 55)
- Operating voltage 230 V AC, 50 Hz
- Power: 34 Watt
- Acoustic power 51 dB (A) sound pressure 47 dB (A)
- General bauaufsichtl. Approval Z-51.1-193
Special Equipment:
- Codable overrun and interval operation
- Follow-up time approximately 6, 15, 21 minutes (adjustable)
- Start-up delay 45 seconds (fixed)
- Interval time of 4, 8, 12 or 24 hours (adjustable)
Application:
- For ventilation of shower, bath or toilet
- Manual control via light switch
