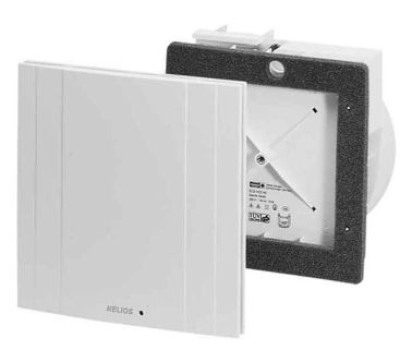

Helios ELS-VEB 100/60 with motion sensor, Serial-No: 0512
Helios ELS-VEB 100/60 with motion sensor
- Replacement blower to 2007 -
- Replacement blower to 2007 -
Scope of supply / equipment:
- Blower unit (fan) ELS-VEB 100/60 of Helios
- For exchanges of blower units by 2007
- Incl. Cover plate alpine white
- Permanent filter cartridge with filter cleaning indicator
- Maintenance-free, energy saving ball bearing motor
- Serial No.: 0512
Suitable for the following replacement devices:
- Blower units Helios ELS 1989-2008
- Blower units Helios ELS 1984 to 1989 (it is the connector contact 20590 Helios required)
Technical Information:
- Air flow 100 or 60 m³ / h
- 2 power stage
- Double insulated Class II (IP 55)
- Operating voltage 230 V AC, 50 Hz
- Power: 16/33 Watt
- Acoustic power 48/41 dB (A) sound pressure 44/37 dB (A)
- General bauaufsichtl. Approval Z-51.1-56
Special Equipment:
- With motion sensor
Operation adjustable from 0 to 21 minutes
Application:
- For ventilation of shower, bath or toilet
- Manual control via light switch
